## Train Simulator Tech Article: Pivot points and couplings

### Legacy calculator

This calculator changed in October 2017 to default to a wagon height of 2.9m with commensurate changes to the calculator. TS20xx does not handle it well when the height of the collision volume includes the wheels, or gets too close to the track. For those wanting the old calculator, it can be found here: Legacy Pivot Point and Coupling calculator.

### The Train Simulator coordinate system

Unlike commercial simulations, the coordinate system in Train Simulator is a screenspace XYZ coordinate system instead of a worldspace one. In worldspace, XY is the ground and Z is up. In screenspace, XZ is the ground and Y is up. So for a wagon or engine, this is the working coordinate system:

Positive X is across the wagon, to the right. Negative X is left. Positive Z is forwards, negative Z is backwards, and positive Y is upwards.

### Wagon pivot points and collision box sizes

Through trial and error, I've come up with a good way to get the pivot points and collision boxes to work consistently in Train Simulator. I'm not saying this is the 100% correct way to do it, but this method does work *reliably*.

First - ensure your wagon is centred around the zero point of the model so that the furthest points front and rear are at the same Z coordinate. For a freight wagon like this, this would normally be the tips of the buffers:

Once you know the coordinate value of the tips of the buffers, put those numbers into this little javascript calculator, along with the overall height and width of the wagon, and it will show you the relevant values to put into the blueprint editor:

Note: The blueprint editor __has typos in it for the pivot points__. *Front pivot X* should read *Front Pivot Z* and *Back pivot X* should read *Back pivot Z*.

*Front pivot Y* and *Back pivot Y* are the midpoint of the buffers off the ground. These can normally be zero as the game doesn't seem to care much about them.

This picture sums up all those values:

**Really important note about the height:** The calculator above will give you a collision height and centrepoint - it's really important you enter the correct height before using it. Train Simulator has an interesting quirk with regards to the collision height; if that imaginary white box in the picture above dips below the ground at any point, it makes it impossible to actually get near the wagon in the game - engines and other wagons will bounce off it about 6-10m in front of the wagon itself. If the white box collides with the wheels, other rail vehicles can get near the wagon but the buffers will pass through each other. I have no idea why this is, but my calculator figures out the correct height for the centrepoint by halving the value you enter for the box height, and placing the volume that distance down from the top of the wagon.

### Coupling pivot points - chain couplings

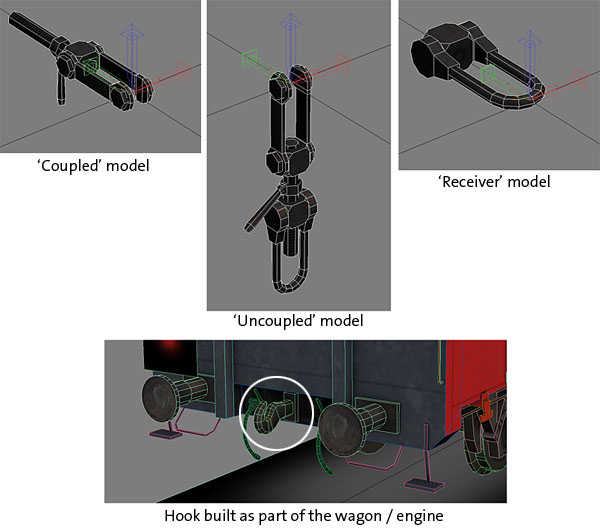

When I'm talking about chain couplings, I'm making a couple of assumptions, shown below. The hooks are built as part of your wagon or locomotive, and your coupler has three different components - a 'coupled' model, an 'uncoupled' model and a 'receiver' model. Each of these models must be built at the origin (0,0,0):

Assuming you are using a 3-link / chain type coupling, the pivot points for this type of coupling look like this. The blue wireframe shows the buffers at one end of the example wagon, the white wireframe is the hook model:

The values below should have been filled out when you calculated the collision and pivot information above. Note that the Y value is something you need to measure off your model - the height of the coupling off the ground.

### Coupling pivot points - solid/bar couplings

Solid couplings work a little differently to chain couplings. The geometry for the coupling is built in two pieces - a coupled and an uncoupled version. The *uncoupled* version is built around the origin (0,0,0) facing forwards (positive Z). This allows the coupler to be placed somewhere on the wagon, facing outwards. The *coupled* version is more or less the exact same geometry but rotated around 180° so that the coupling face is now at the origin point:

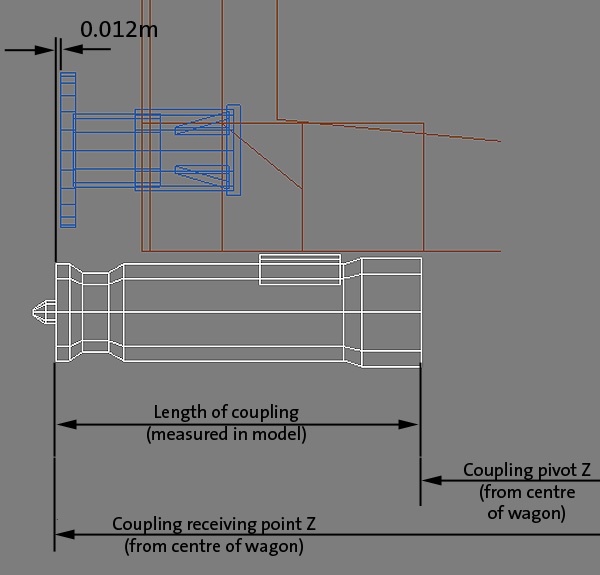

Solid couplings typically extend a little bit beyond the tips of the buffers. I've found about a centimetre works well - 0.012m. You also need to know the length of the solid coupler - measure that from your model. In this example it's 0.91m. So the *receiving point* is a little ahead of the buffers, and the *pivot point* is that value minus the length of the coupling model itself:

Use this little script to figure out the solid coupling pivot and receiving points based on the tips of the buffers in your wagon:

The last thing you need to do for a solid connection is make sure your coupling blueprint has the *Pivot Type* set to *Midpoint*

### Coupling pivot points - buckeye couplings

At this time I have not had a chance to research an easy formula for the pivot points for buckeye couplings.

### Conclusion

As I said above, this might not the most technically correct way to get these numbers but it's worked perfectly for me for dozens of wagons and engines. I hope it works for you too.
